Viro art 7435 brass-plated mortise lock with 60 mm entrance without cylinder

Viro mortise locks are compatible with most cylinders on the market and are the most used for the wide range of inlets available: from 20 to 70 mm.
Viro lock art. 7435 inlet 60 mm

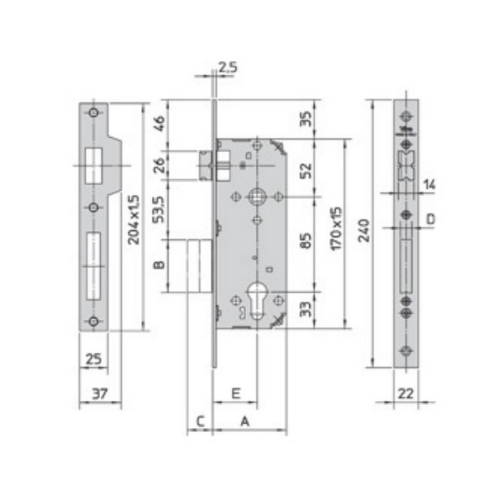

DATA SHEET:
Case: completely closed in painted steel. DIN standard pass-through holes for applying security washers.
Standard latch and deadbolt: in solid brass in both brass and steel versions (except for the deadbolt for 20/25/30 entries). Reversible latch with a simple operation.
Brass version: with standard latch (for maximum safety);
Mechanism: center distance 85 mm;
8 mm handle follower;
2 throws for inlets from 35 to 70 mm;
1 delivery for inlets from 20 to 35 mm (35 mm inlet with 1 or 2 throws).
Plate and strike plate: in steel (7435 series) or brass (7431 series).
Removable and replaceable plate.
Square edge counterplates with jamb protection flap.
Supplied with: fixing screws for the lock and fixing screw for the cylinder.
Case width: 86 mm
Bolt size: 47x10
Stroke of the outlets: 20 mm
Sends: 2
Weight 790 gr
